Web UI

A tour of the web interface (java -jar web/target/aic-web.jar, then open http://localhost:8081).

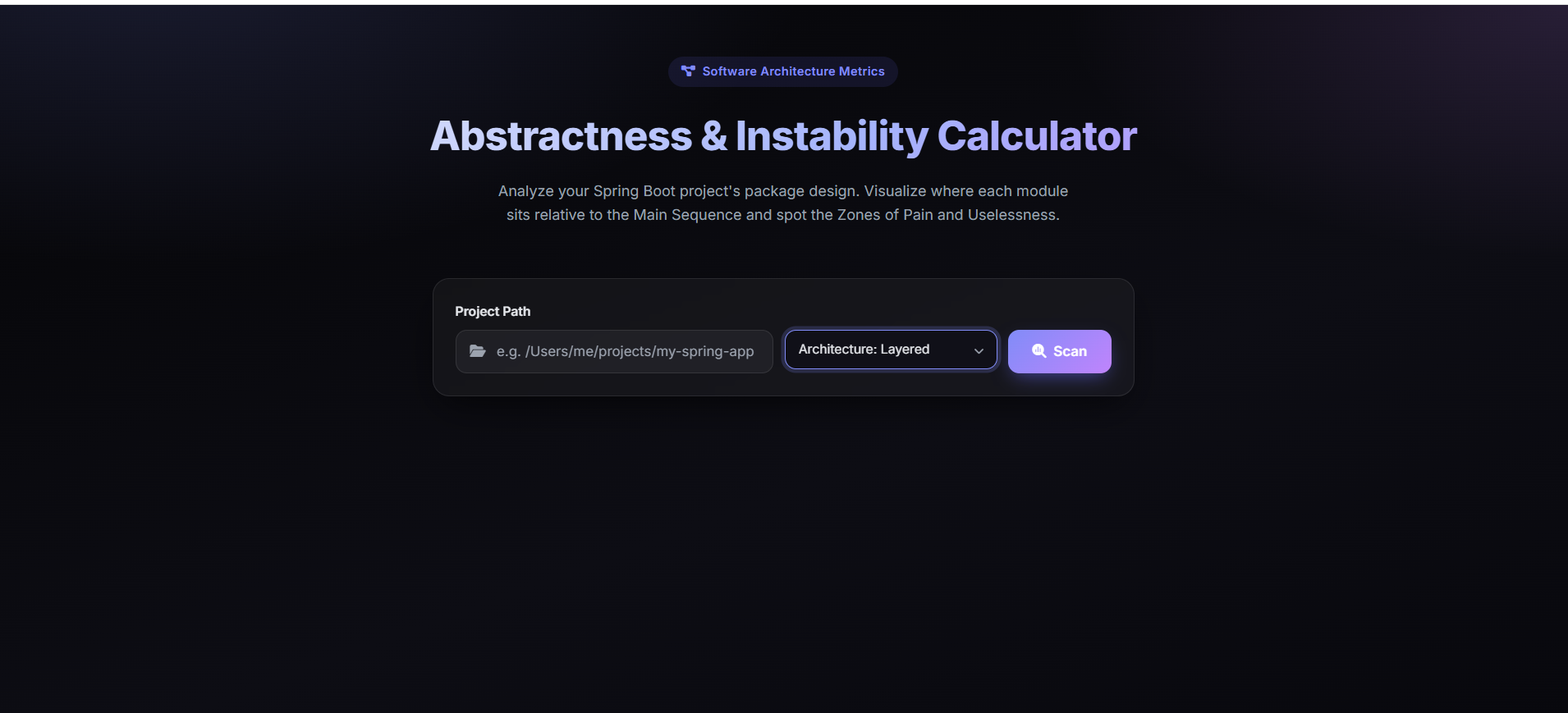

Scan a project

Enter the path to a compiled project, optionally pick an architecture template from the dropdown, and click Scan.

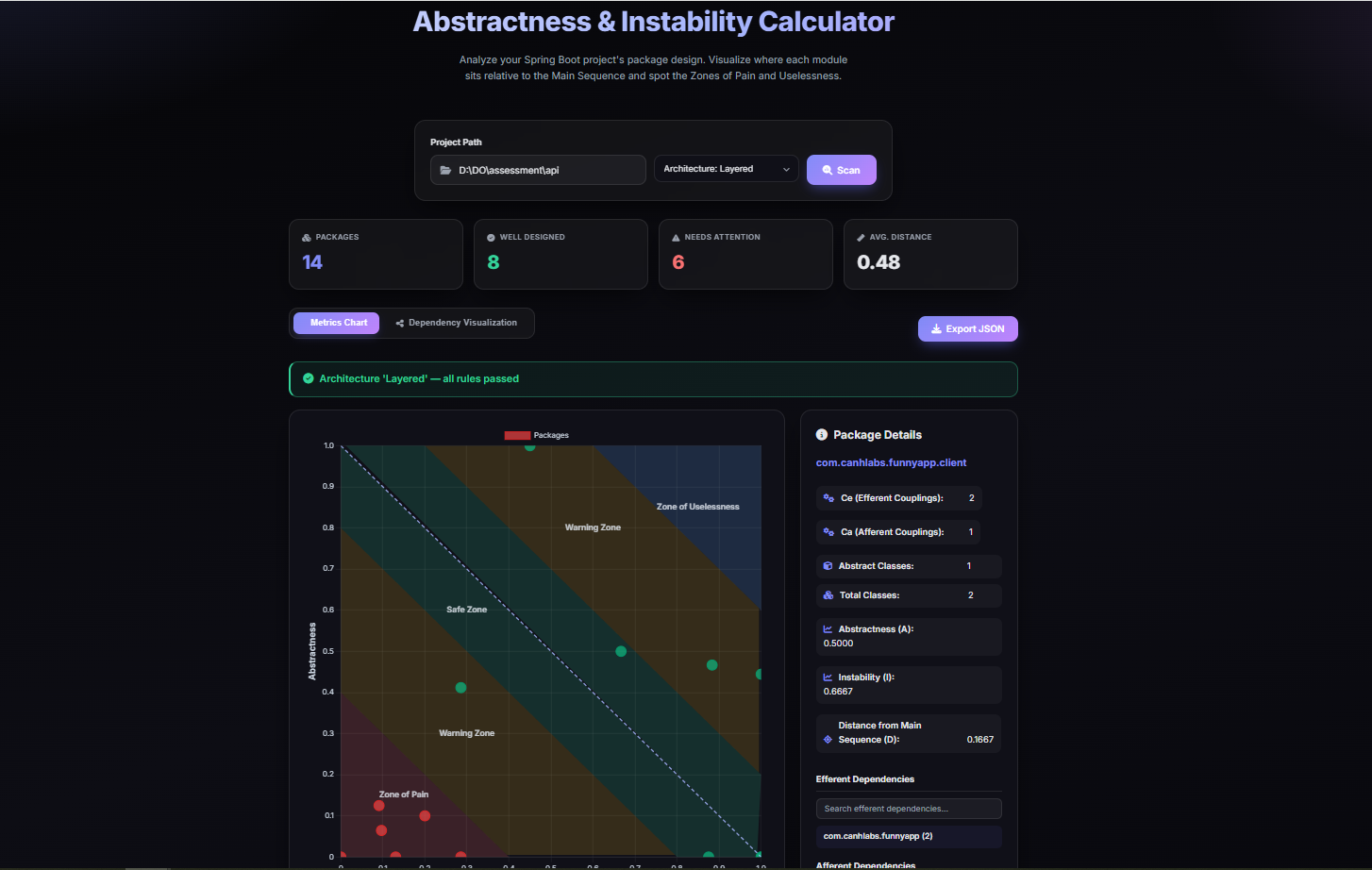

Metrics chart

After scanning you get summary cards (packages, well-designed, needs-attention, average distance), the architecture banner (green when compliant), the abstractness vs. instability scatter plot with the Main Sequence and the Pain/Uselessness/Safe/Warning zones, and a per-package details panel. Use Export JSON to download the metrics envelope.

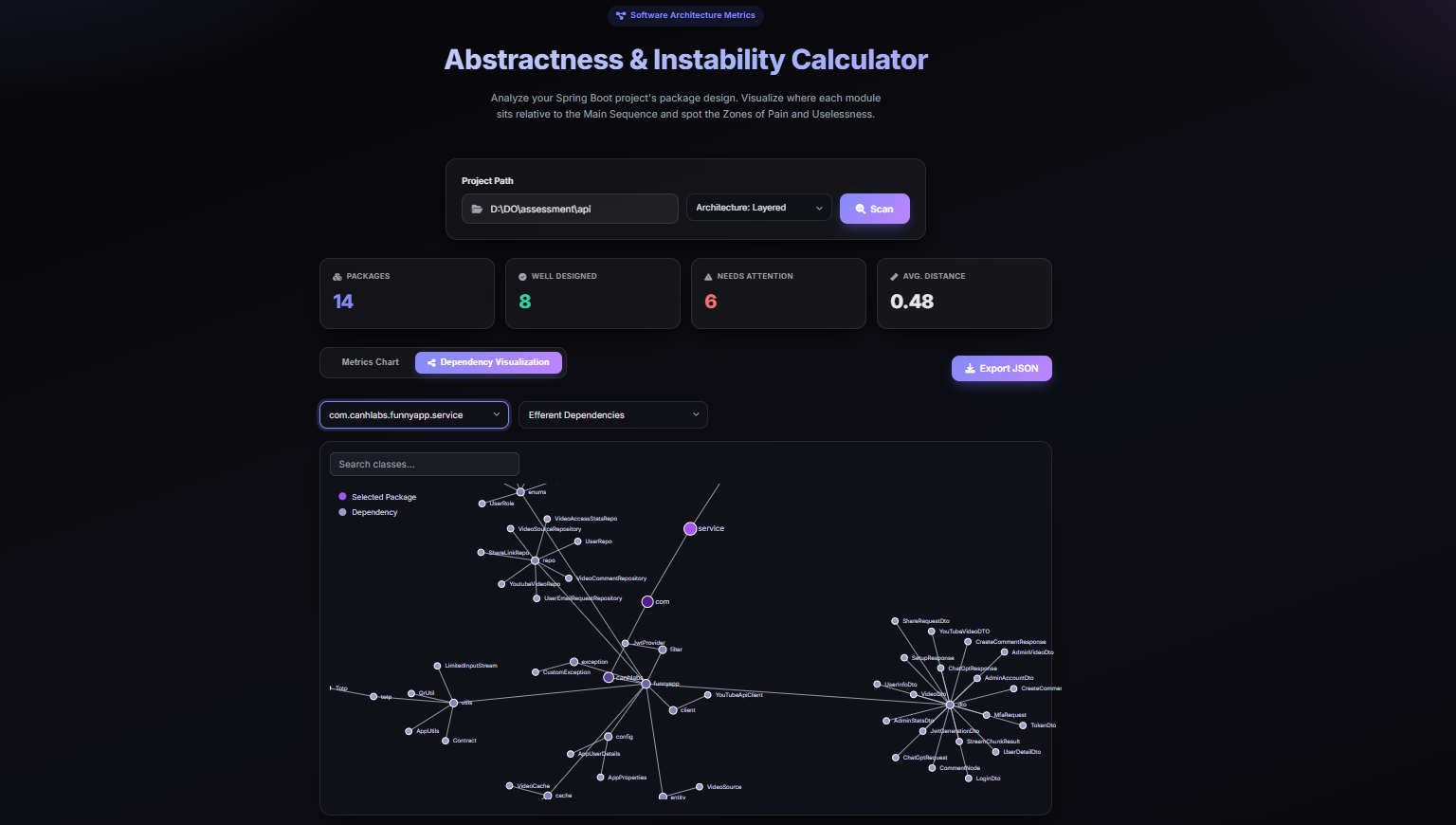

Dependency visualization

The Dependency Visualization tab renders a force-directed graph of a selected package's efferent or afferent dependencies.
