Sequence Diagrams

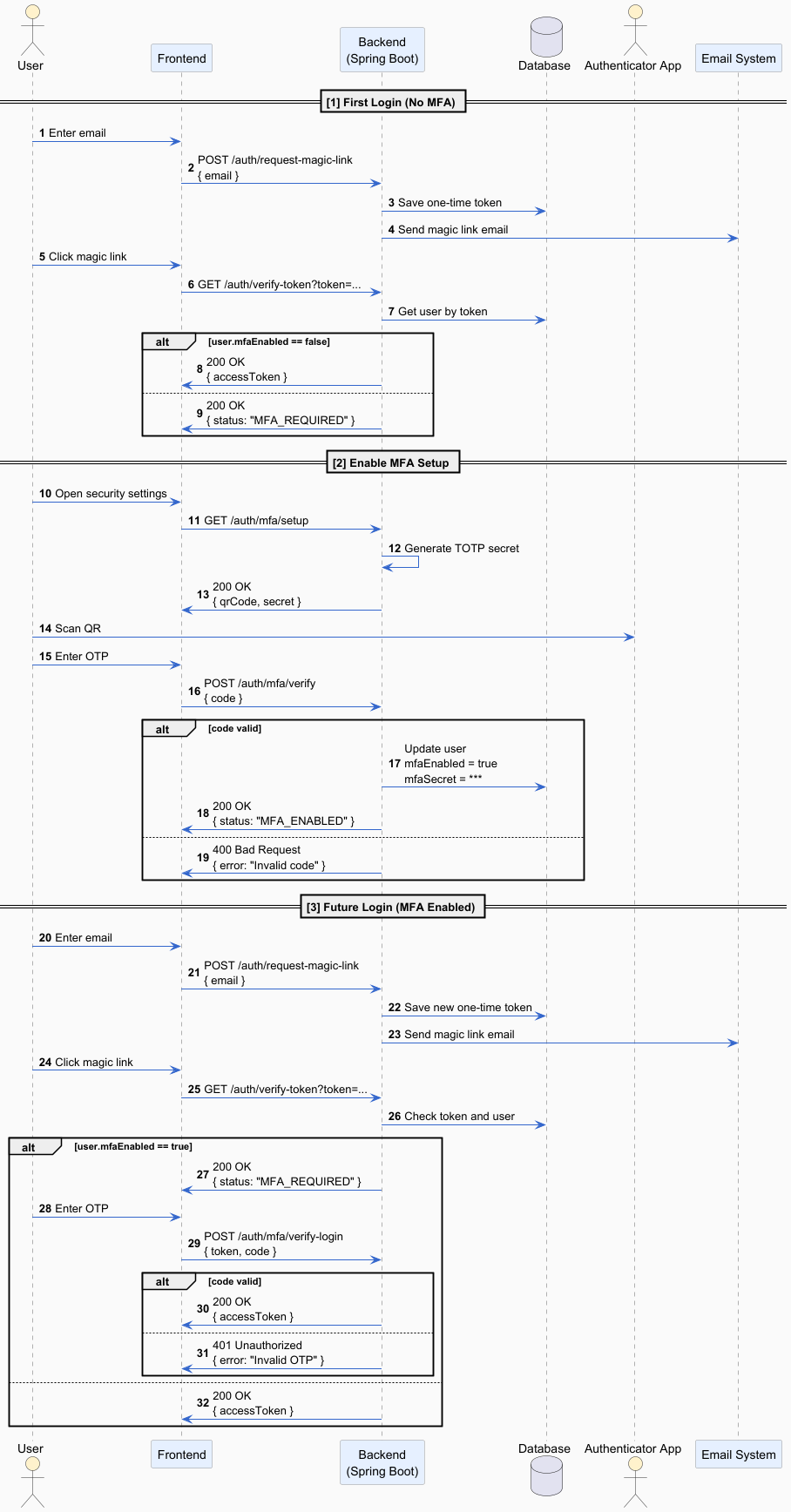

Sequence Diagram for the Authentication Flow

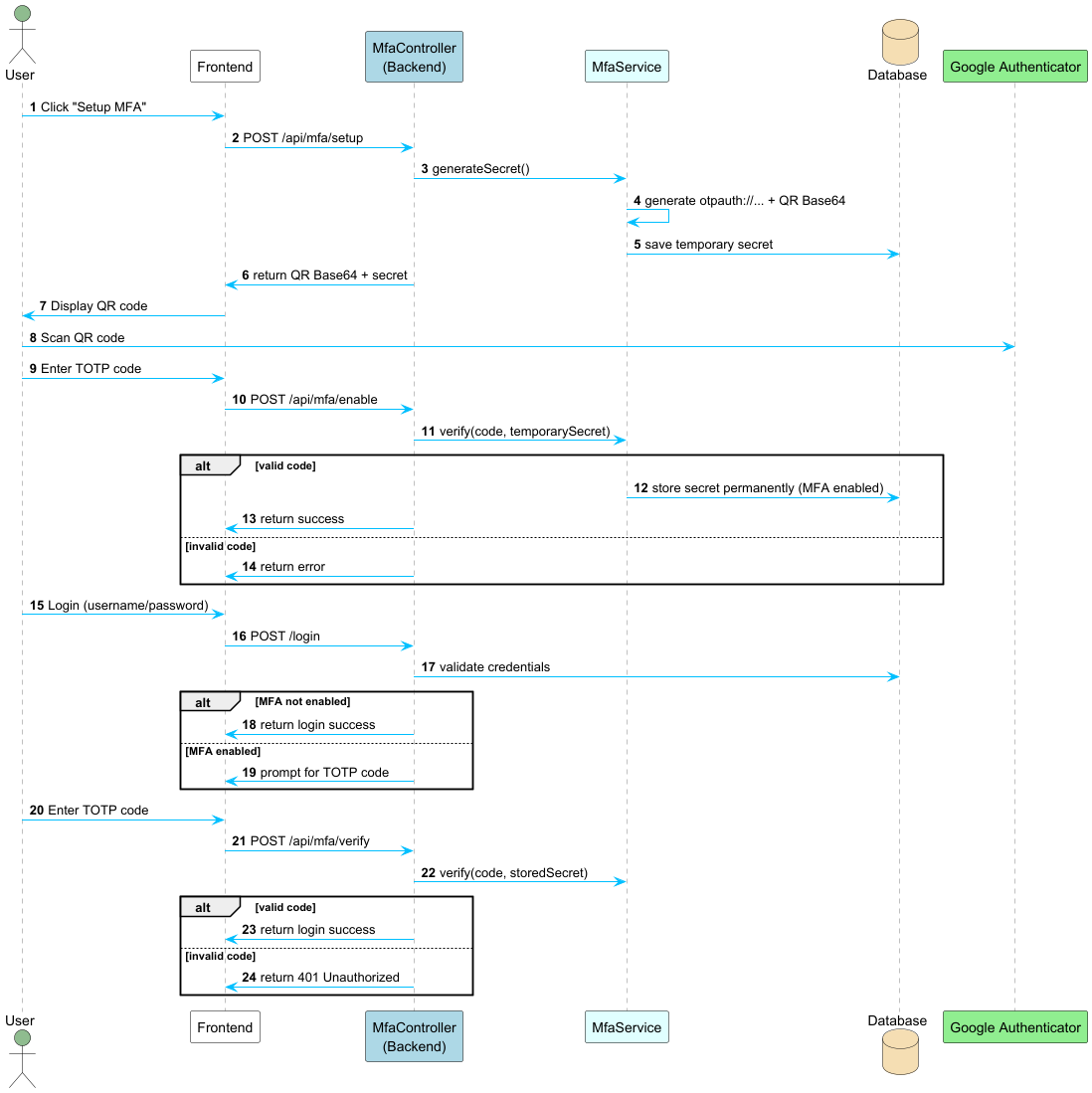

Sequence Diagram for the Multi-Factor Authentication Flow

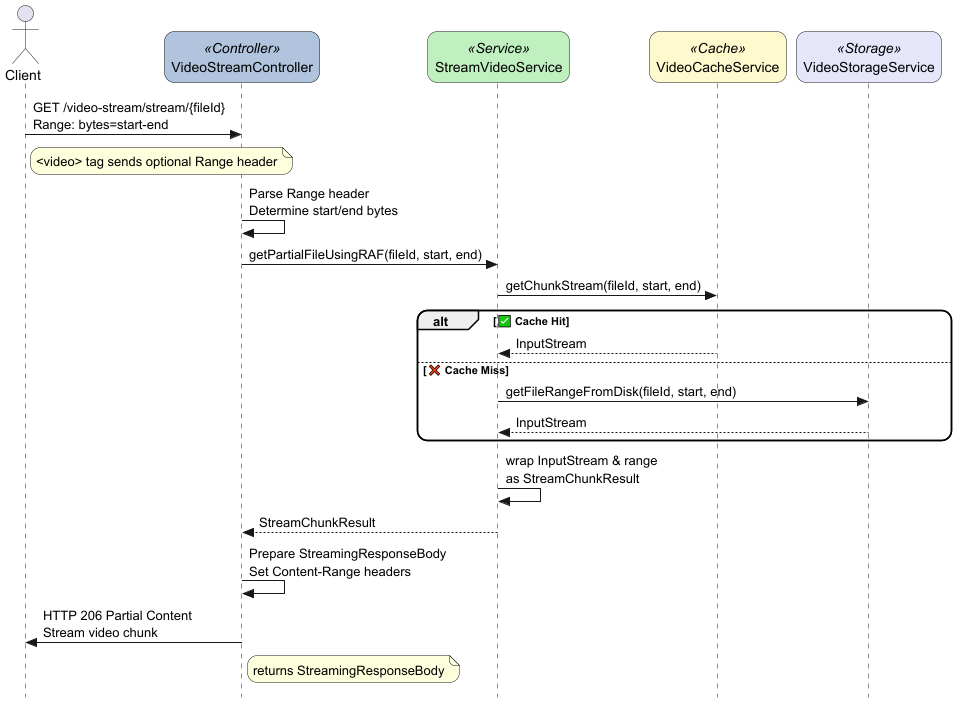

Sequence Diagram for the Video Streaming Flow

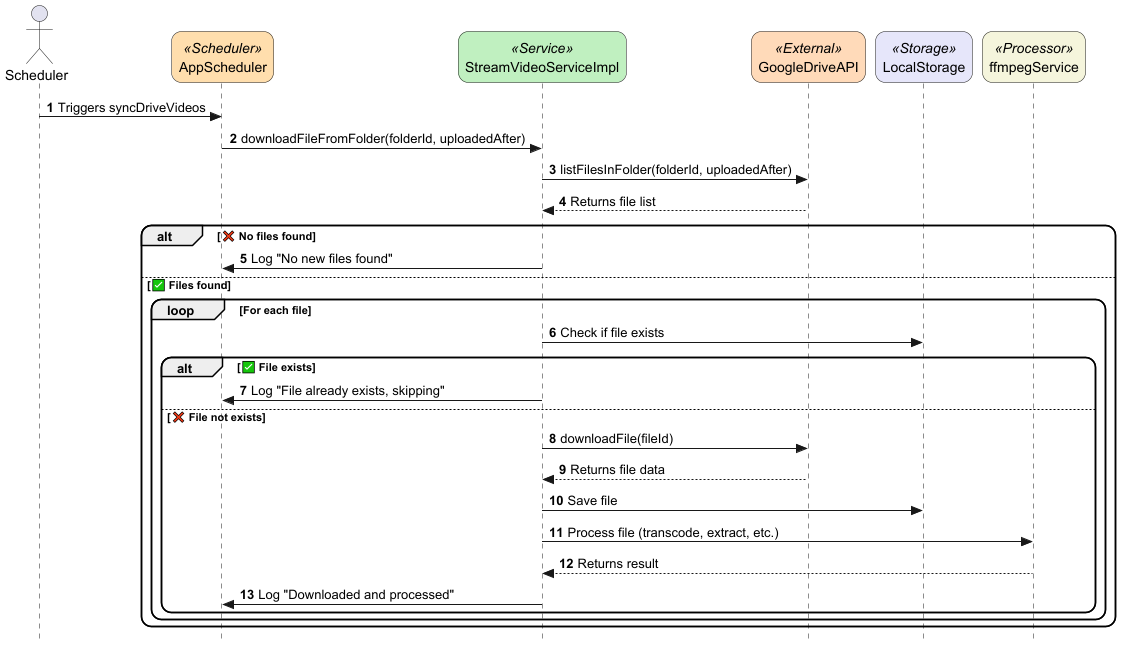

Sequence Diagram for the Video Job Fetching

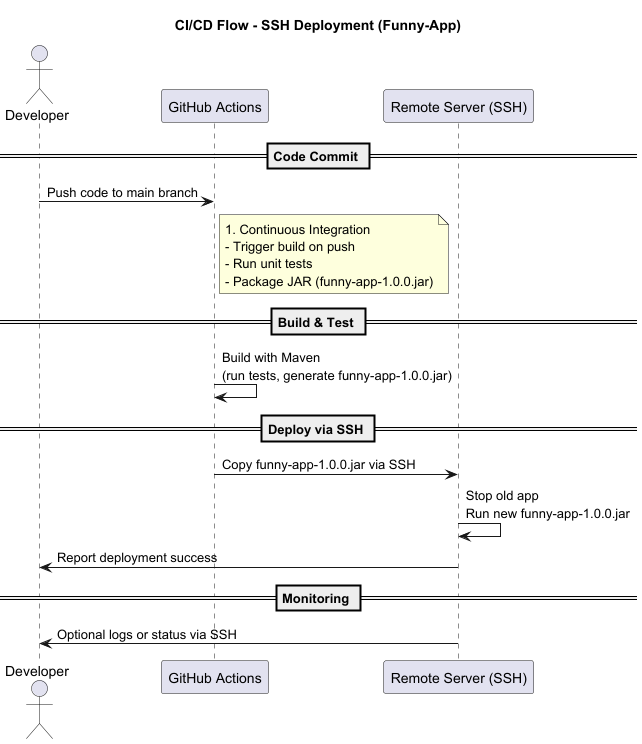

Deployment Diagram for SSH Deployment via CI/CD Flow

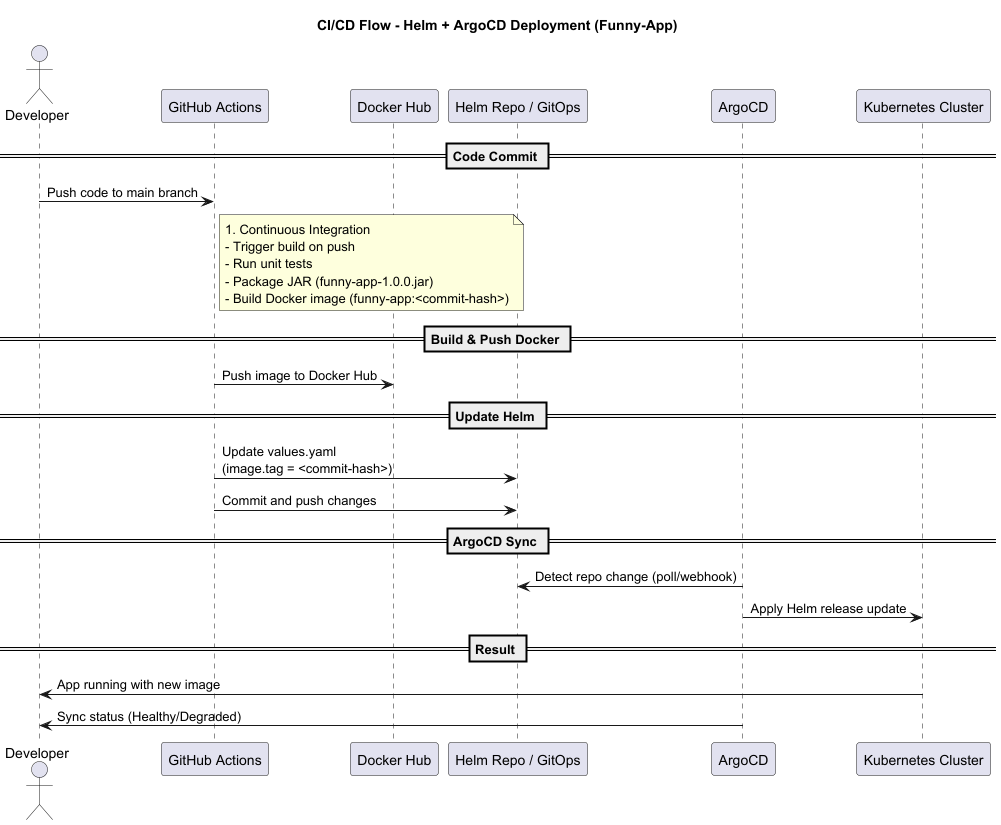

Deployment Diagram for Kubernetes Deployment via CI/CD Flow
